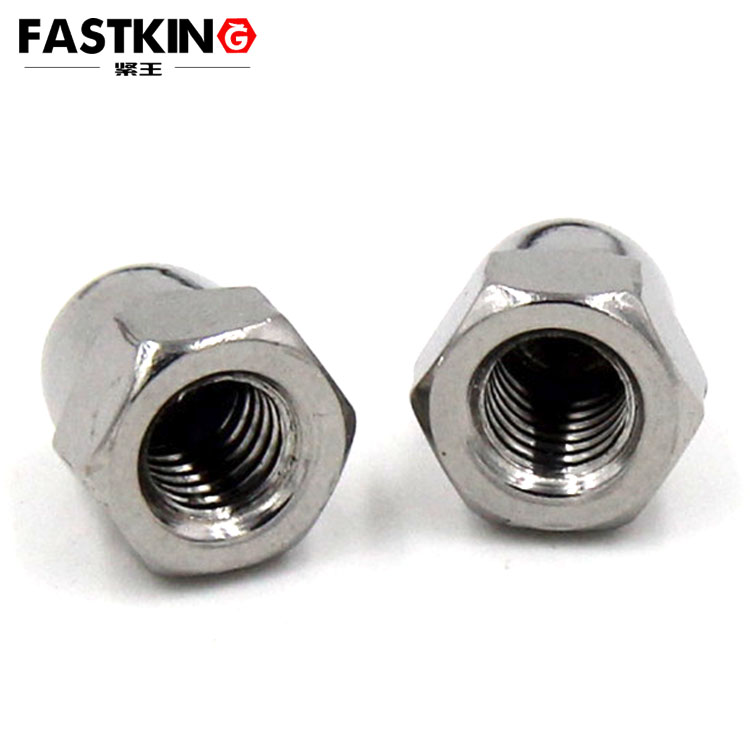

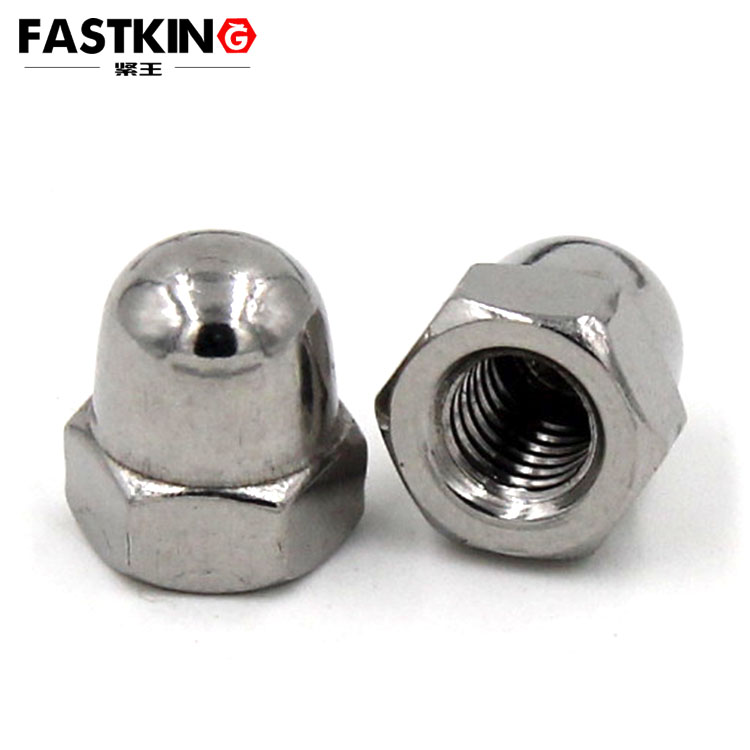

Cap nut din1587
Material: stainless steel 304316, grade 8.8 high strength and grade 12.9 high strength
Product standard:din1587
I. Product Definition & Core Structure: From "Basic Connection" to "Protection Upgrade" Cap nuts, also commonly referred to as "covering nuts" or "decorative nuts" in the industry, are essentially hexagon nuts with an integrated protective cap. They belong to the derivative category of hexagon nuts. The core of their design lies in integrating a "dome-shaped or flat-top protective cap" at one end of a standard hexagon nut through casting, stamping, or welding processes, forming a dual-functional structure where "the nut body bears loads and the protective cap prevents corrosion". Currently, mainstream implementation standards include the international standard ISO 1212 and China’s national standard GB/T 923, which clearly specify key product parameters: - **Specification Coverage**: The nominal thread diameter ranges from M3 to M36, compatible with bolts of different nominal diameters. For example, an M8 cap nut can be used with an M8 bolt; - **Structural Details**: The inner diameter of the protective cap must be slightly larger than the diameter of the bolt head (usually 1-2mm larger) to ensure that the bolt head and exposed threads are fully covered after tightening; the height of the cap must match the exposed length of the bolt to avoid partial thread exposure due to an excessively short cap; - **Material Matching**: The nut body and protective cap are mostly of an integrated, same-material design (to avoid galvanic corrosion caused by contact between different materials). Common materials include carbon steel (Q235, 45#, with surface treatments such as galvanizing or Dacromet to enhance rust resistance), stainless steel (304 for general humid environments, 316 for highly corrosive environments like marine or chemical industries), and for some special scenarios, a combination of "metal body + nylon cap" (lightweight and insulating, suitable for light-duty equipment).
Compared with ordinary hexagon nuts, the core difference of cap nuts lies in "the presence of the protective cap" — ordinary nuts only focus on "fastening strength", while cap nuts incorporate "protective performance" and "appearance neatness" into their design considerations, filling the demand gap for "rust prevention + aesthetics for exposed fasteners".
The rust resistance of cap nuts stems from the "physical barrier" formed by the protective cap and the "corrosion resistance synergy" of material selection, which can be analyzed from two dimensions:
After an ordinary hexagon nut is tightened, the gaps between the bolt head, the nut, and the connected component are directly exposed to the outside. Corrosive media such as rainwater, dew, industrial dust (containing acid-base components), and marine salt can directly penetrate the thread pair: Moisture causes electrochemical corrosion on the metal surface, generating rust (iron oxide), which fills the thread gaps and easily leads to "seizure" during later disassembly; dust and corrosive liquids accelerate thread wear and weaken connection strength.
In contrast, the protective cap of a cap nut can fully cover the bolt head and exposed thread parts, forming a closed "protective space": On one hand, the dome/flat-top structure of the cap prevents liquid media (rainwater, dew) from directly dripping onto and contacting the threads; on the other hand, the joint between the cap and the nut body fits tightly, reducing the infiltration of dust and moisture and cutting off the contact path between corrosive media and the thread pair at the source. For cap nuts used in high-humidity scenarios (such as sanitary equipment, pool surroundings), a rubber sealing ring is often added inside the protective cap to further enhance the sealing effect, achieving "dual protection of physical barrier + sealing ring".
The rust prevention effect of cap nuts also relies on the synergy between the body material and surface treatment:
-
Stainless Steel: 304 stainless steel contains chromium and nickel elements, and a dense chromium oxide passivation film forms on its surface, which can resist corrosion from the atmosphere and fresh water; 316 stainless steel additionally contains molybdenum, making the passivation film more stable and resistant to erosion from seawater and chemical solutions, suitable for scenarios such as marine engineering and chemical equipment;
-
Carbon Steel Surface Treatment: Ordinary carbon steel cap nuts require galvanizing (hot-dip galvanizing, electro-galvanizing) or Dacromet coating to improve rust resistance — the thickness of the hot-dip galvanized layer can reach 80-100μm, effectively isolating air and moisture; Dacromet coating has the characteristics of "no hydrogen embrittlement and salt spray resistance", with a salt spray resistance time of over 500 hours, suitable for outdoor buildings, street lamp poles, and other scenarios.
This combination of "structural protection + material protection" extends the rust-free service life of cap nuts by 3-5 times compared to ordinary hexagon nuts. For example, in the connection of outdoor door and window hinges, ordinary galvanized nuts may rust in 2-3 years, while cap nuts can remain in good condition for 5-8 years.
In addition to the core rust prevention function, cap nuts have two additional advantages that make them irreplaceable in multiple scenarios:
When ordinary hexagon nuts and bolt heads are exposed, they damage the overall aesthetics of equipment or components — for example, in the leg frames of furniture tables and chairs, the hinge connections of doors and windows, and the exposed brackets of fitness equipment, using ordinary nuts directly will result in a rough "industrial look" from the bolt heads and threads. In contrast, the protective cap of a cap nut can fully hide the bolt head and threads, exposing only the smooth cap surface, making the fastener connection cleaner and more refined: In furniture manufacturing, stainless steel cap nuts can blend with metal table frames, enhancing the high-end feel of the product; in architectural decoration, black Dacromet-coated cap nuts can match the color of outdoor guardrails, preventing exposed fasteners from damaging the overall design style.
Some fastener connections in equipment require regular adjustment (such as height adjustment of outdoor sunshades, tightness adjustment of fitness equipment). If ordinary nuts are used, foreign objects such as dust and sand easily enter the thread gaps, causing thread jamming or even wear during adjustment. The protective cap of a cap nut can block the infiltration of foreign objects, keep the threads clean, and ensure smooth cooperation between the bolt and nut during later adjustments. For example, at the angle adjustment part of street lamp poles, cap nuts not only prevent rainwater rust but also avoid dust entering the threads, ensuring the flexibility of street lamp angle adjustment.
The characteristics of cap nuts make them widely used in outdoor, humid, and exposed scenarios. Typical scenarios include:
-
Hinge and handle connections for outdoor windows (aluminum alloy windows, plastic-steel windows): These need to resist rainwater and sun exposure; cap nuts can prevent hinge bolts from rusting while hiding exposed structures to enhance the appearance of doors and windows;
-
Building guardrails (balcony guardrails, stair handrails): Exposed fasteners need to balance rust prevention and aesthetics; stainless steel cap nuts can match the material of the guardrails to avoid safety risks caused by rust.
-
Street lamp poles and surveillance poles: These are exposed outdoors for a long time and need to resist rainwater and dust; carbon steel cap nuts with Dacromet coating can meet rust prevention needs;
-
Garden fitness equipment and leisure seats: Exposed bolts need to prevent rainwater rust while maintaining a neat appearance; cap nuts can achieve both.
-
Metal furniture (tables, chairs, bookshelves): Exposed fasteners need to be hidden; cap nuts can enhance the aesthetics of furniture and prevent users from being scratched by bolt heads;
-
Sanitary equipment (towel racks, storage racks): High-humidity environments easily cause rust; cap nuts with rubber sealing rings can enhance sealing and prevent moisture infiltration.
-
External automotive accessories (roof racks, running boards): These need to resist corrosion from rainwater and road salt; stainless steel cap nuts can extend their service life;
-
Marine deck accessories (guardrails, equipment fixing): The marine environment has high salt content; 316 stainless steel cap nuts can resist seawater corrosion.
To fully exert the rust prevention and fastening effects of cap nuts, attention should be paid to selection and installation details:
-
Ordinary dry indoor scenarios (such as furniture, indoor equipment): Carbon steel cap nuts with galvanizing can be selected for lower cost;
-
Humid/outdoor scenarios (such as doors, windows, street lamps): 304 stainless steel or carbon steel cap nuts with Dacromet coating are preferred;
-
Highly corrosive scenarios (marine, chemical industries): 316 stainless steel cap nuts must be used to avoid rust caused by material incompatibility.
-
The thread specification must match the bolt (e.g., an M10 bolt with an M10 cap nut) to avoid fastening failure due to mismatched threads;
-
The inner diameter of the protective cap must cover the bolt head (usually inner diameter of the cap = bolt head diameter + 1mm), and the height of the cap must be greater than the exposed length of the bolt (2-3mm greater is recommended) to prevent partial thread exposure.
-
During installation, the cap nut body must first be tightened (it is recommended to use a torque wrench to control the torque; e.g., the recommended torque for M8 cap nuts is 18-22N?m) to ensure the nut fits closely with the connected component;
-
If a rubber sealing ring is included, check whether the ring is intact to avoid seal failure due to extrusion deformation during installation;
-
Over-tightening is prohibited to prevent the protective cap from cracking (especially for nylon caps or thin metal caps).
The emergence of cap nuts epitomizes the development of fasteners from "single-function" to "multi-functional integration" — they are no longer limited to the basic demand of "connection and fastening", but through structural innovation, integrate "rust protection", "aesthetic appeal", and "thread maintenance" into one, solving the pain points of ordinary nuts in exposed and harsh environments. In modern industrial and civil fields, as requirements for product service life and appearance quality continue to rise, the application scenarios of cap nuts will further expand — for example, the fixing of external charging ports for new energy vehicles and exposed fasteners for photovoltaic brackets both require rust prevention and aesthetics, making cap nuts the preferred fasteners for these scenarios.
As a "small yet refined" fastener, cap nuts, despite their small size, enhance the reliability and aesthetics of fastener connections through "detailed design", validating the development logic of the fastener industry that "small innovations can also create great value".
